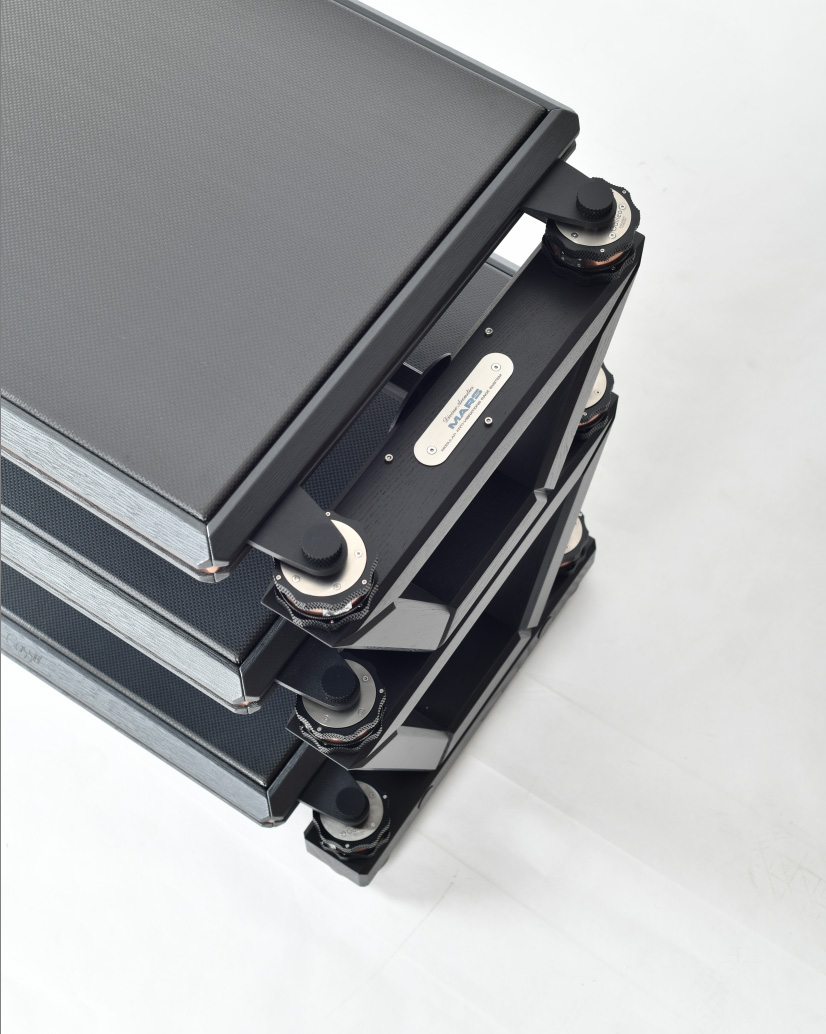

Discover MARS – a reference-class, modular anti-vibration rack – a comprehensive solution in the fight against vibrations, designed for the most demanding audio equipment users.
More than just a piece of furniture, MARS is a precise tool that elevates the performance of your audio system to a higher level.
The key advantage of the MARS rack lies in its ability to individually tune each level to the internal resonances of the devices placed on it.
Each level of the MARS rack is formed by the multi-award-winning Cassini platform with a precision tuning function, which guarantees maximum isolation from unwanted vibrations and exceptional sound quality.
MARS is a modular construction that offers a wide range of customization – with several hundred possible configurations to choose from.
It is available in three widths – M, L and XL – and in 2-, 3-, or 4-level versions.

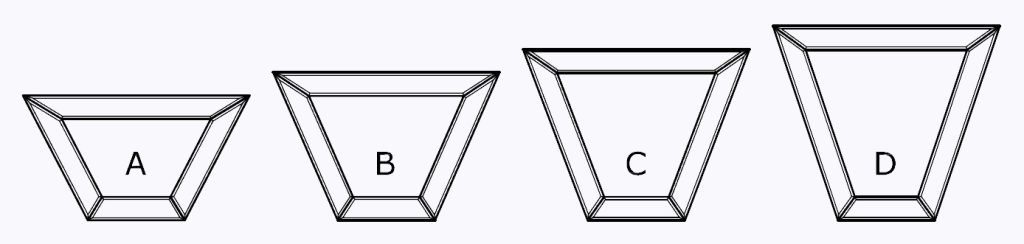

The spacing between levels can be customized by selecting one of four available trapezoid heights: A, B, C, or D.

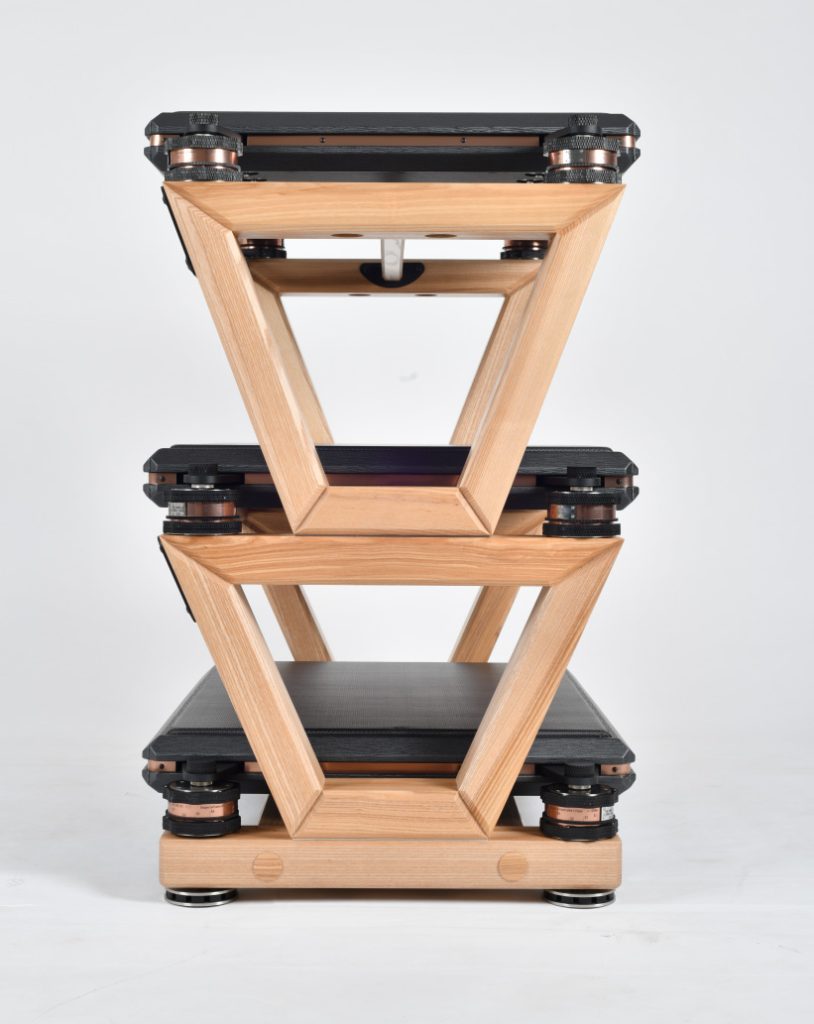

The distinctive character of MARS is emphasized by carefully selected materials and finishes. The rack frame, made of solid ash wood, is offered in either a natural or matte black finish.
Finishing elements are available in three elegant color variants: copper, steel or gold.
Usable spaces between MARS levels:
A: 18cm [7in]
B: 23cm [9in]
C: 28cm [11in]
D: 33cm [13in]
CONSTRUCTION
The Cassini consists of 5 modules. For simplicity of description, let’s assume that the vibration will pass sequentially through each of them:
1. The top board
The top board of the Cassini has a sandwich structure – it consists of 8 layers of different densities and thicknesses. The top is finished with carbon fiber with minimal resin content and is protected with varnish. The remaining layers of the board are made of MDF, HDF, and exotic wood. One of them is a metal mesh that needs to be grounded.
2. Kepler footers
Vibrations from the top board reach three Kepler EVOLUTION components placed under the top board in a precisely defined triangle. For each platform size – a total of 8 sizes to choose from – the triangle was experimentally selected using vibration generators. Measurements with accelerometers enabled the creation of a vibration distribution map for each platform size and the arrangement of support in a triangle providing the best anti-vibration effects.
3. The bottom board
The Keplers rest on a bottom board with a similar sandwich structure to the top board. One of its layers also requires grounding. The bottom board has additional elements designed to lift the top board. This is to protect the gemstones in the Kepler EVOLUTION during transport of the Cassini platform.
4. Steel arms
The bottom board is suspended under steel arms, which transmit vibrations outside its outline. This makes the whole structure lower (with a lower center of gravity) and simultaneously reduces the intrinsic resonances of the Cassini platform.
5. Galileo footers
The final module is the Galileo footer, which, thanks to their construction and vibration damping properties, enable precise “tuning” of the Cassini platform to the device placed on it.
Cassini on the cover of the HighFidelity.pl
The Cassini anti-vibration platform is offered in 8 sizes, allowing the placement of devices of almost any size on it.
Cassini in sizes L and XL form the shelves of the MARS modular rack.
However, it should be noted that the maximum load for Cassini is 80kg.
TECHNICAL SPECIFICATIONS
Section under construction, please come back soon.
- Design: Multi-layered isolated and damped vibration-absorbing platform with grounding;
- Main construction materials:
MDF board, HDF board, exotic wood, carbon, steinless steel, structural steel; - Height: ——mm +——mm;
- Maximum load capacity: 80kg;
- Platform weight: ——-kg.
TABLE OF SIZES
| Size | X | Y | A | B |
|---|---|---|---|---|
| L (MARS) | cm | cm | cm | cm |
| XL (MARS) | cm | cm | cm | cm |
Experience the significant improvement in sound with anti-vibration. Test and try Cassini in your audio system.
